The high-strength prefabricated steel structure warehouse provides a comprehensive one-stop solution with fast delivery and experienced installation guidance. This building system is composed of two main parts:

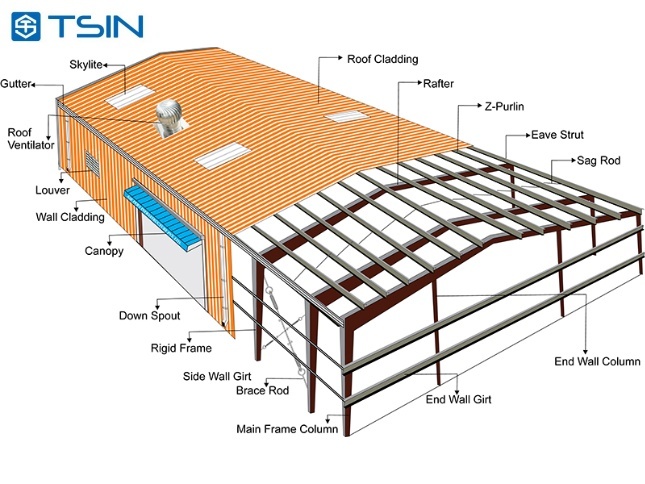

Portal Steel Frame Design
The steel frame features a portal steel frame structure, including steel columns, beams, and bracing. Together with the external enclosure, it forms a fully enclosed building capable of withstanding severe weather conditions such as strong winds, heavy rain, and snow.
Precision Fabrication & Efficient Installation
All metal components are cut, welded, drilled, and painted in our workshop before transportation to the construction site. Each component is bolted on-site for quick and labor-saving installation.
Structural Components
The steel frame comprises five key structural elements:
-
Tension members
-
Compression members
-
Bending members
-
Combined-stress members
-
Connections
Construction Features
- Lightweight construction with high strength, large spans, and reduced foundation pressure
- Shorter construction period compared to concrete buildings with simple on-site assembly
- 20-30% lower investment cost than traditional buildings
- High fireproof performance and corrosion resistance
- Buildings can be disassembled, moved easily, and recycled with no pollution
Technical Specifications
| Dimension | Length * width * eave height, roof slope |
| Type | Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor |
| Foundation | Concrete and steel foundation bolts |
| Column and Beam | Hot rolled or welded H steel Q355B, high strength bolts connection, straight or variable cross-section |
| Bracing | X or V type bracing made from angle steel or pipe |

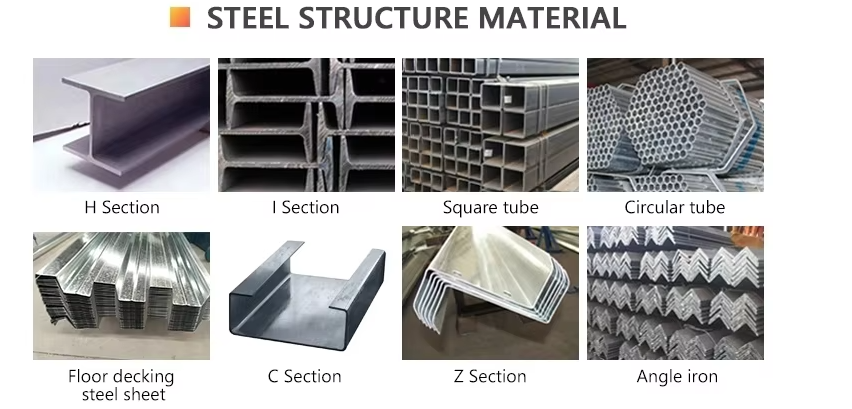

| C/Z Purlin | Q235B C/Z section steel (C160-300 or Z160-300) |

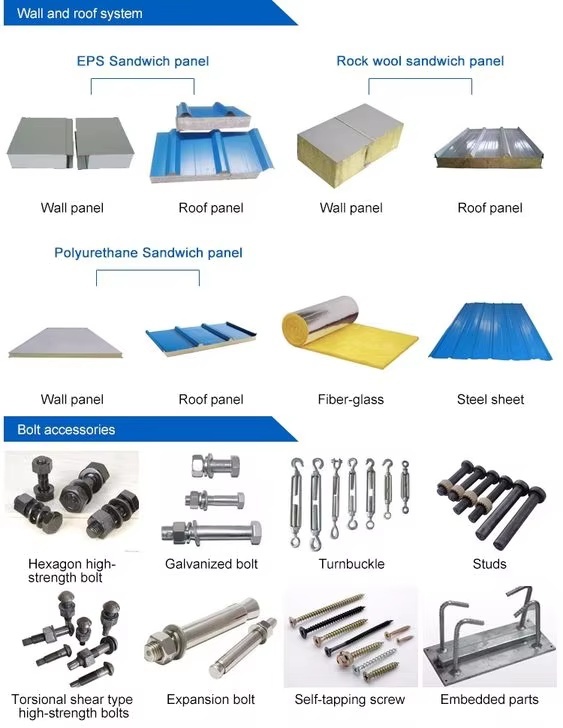

| Roof/Wall Panel | Single colorful corrugated steel sheet or sandwich panel with EPS, rock wool, glass wool, or PU insulation |
| Accessories | Skylight belts, ventilators, down pipes, gutters, doors, windows |
| Surface Treatment | Painting or hot dip galvanized |
| Package | Nude or packed on steel pallet in 40'HQ/OT containers |
Our Advantages
Welding Procedures at TSIN
At TSIN, we adhere to all welding procedures in accordance with GB standards. Our dedicated Welding Inspectors are certified by the relevant government authorities, ensuring the highest levels of compliance and safety.
We conduct non-destructive testing (NDT) in line with contract specifications and applicable welding codes. This process includes comprehensive documentation of all inspections, test plans, and quality manuals, which are meticulously maintained.
Tests We Conduct:
- Dimension Check
- Visual Examination
- Ultrasonic Testing
Whether manufacturing for domestic structures, industrial buildings, or commercial projects, our precision fabrication minimizes onsite time and associated labor costs.
At TSIN, we believe that the quality of our work is a hallmark of our services. We are committed to delivering exceptional quality products and services that reflect our dedication to excellence at every stage of the project lifecycle.
We implement extensive quality control measures to ensure superior quality from start to finish. This includes thorough inspections of all materials before and after fabrication.
Our team comprises highly trained and experienced professionals in fabrication and welding, enabling us to offer a wide variety of services tailored to meet your specific project requirements.
Our processes include:
- Measuring, cutting, and welding steel
- Accurately placing holes and cleats in the correct positions
- Packaging and carefully loading materials in the correct sequence
- Dispatching to the site and erecting if required
We implement rigorous quality control measures throughout the project lifecycle, including:
- Material inspections before and after fabrication
- Precision measuring, cutting, and welding
- Accurate hole and cleat placement
- Proper packaging and loading sequence
- On-site erection when required
Company Profile
Qingdao Tsin Steel Structure Construction Technology Co., Ltd. provides integrated solutions for steel structure workshops, warehouses, and multi-storey buildings, including:
- Layout consulting and structural design
- Fabrication and delivery solutions
- Installation guidance
Our production capacity reaches 2,500 tons per month across 20,000m² of workshop space (30,000m² total factory area). We operate complete production lines for H steel, C/Z purlins, and various steel sheet and sandwich panels.
1. Who are we?
Based in Shandong, China since 2025, we serve clients in South America, Africa, Oceania, and other global markets with a team of 5-10 professionals.
2. How do we guarantee quality?
Pre-production samples and final inspections before shipment ensure consistent quality standards.
3. What products do we offer?

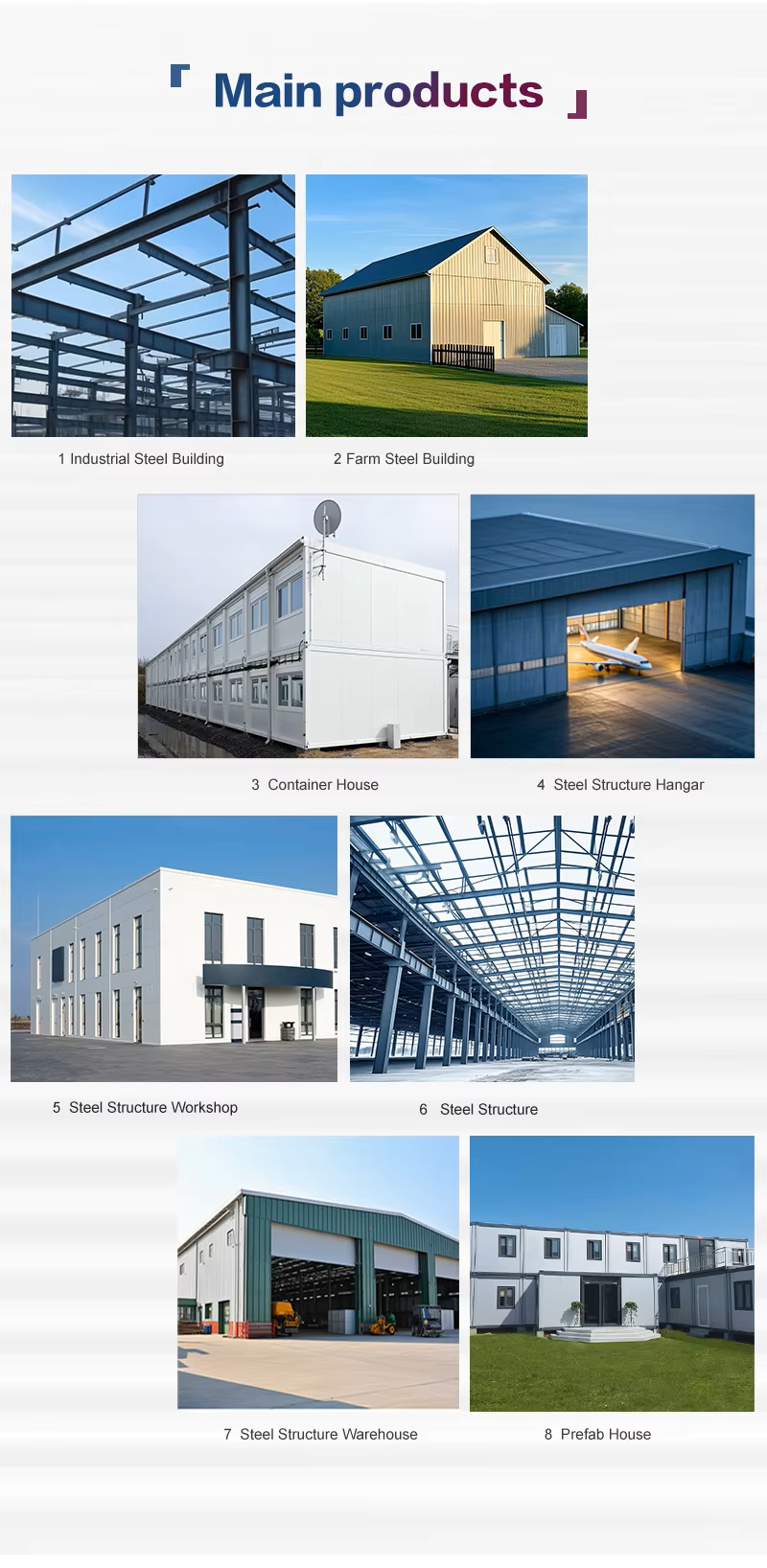

Steel Structure Warehouses, Workshops, Buildings, Poultry Houses, and Prefab Houses.
4. Why choose us?
20+ years experience providing complete steel structure solutions with integrated design, fabrication, and installation services.
5. What services do we provide?
We accept FOB, CFR, CIF, EXW delivery terms and T/T, L/C, Cash payments in USD, EUR, AUD, CNY.
